Order StationPro Parts Kits for Immediate Shipping

Read this First!

1. Ordering StationPro parts is an easy two-step process. First, you order an SP-I or SP-II "semi-kit" from my distributor, Harbach Electronics, as described below. My semi-kits include the enclosures, circuit boards and the other items listed in the next block and in the below photographs.
Next, you order the remaining components from Mouser Electronics, my recommended supplier and an international distributor of electronics components. Clicking on one of the following links will take you to an already-filled-out shopping cart on the Mouser secure website. You can change quantites and add or delete individual parts, as desired, and then check out in the normal way.

To order Mouser SP-I Parts, click HERE
To order Mouser SP-II Parts, click HERE

Your Mouser order will cost approximately $200 (SP-I) and $350 (SP-II). Note: Mouser accepts orders from international customers and ships worldwide.

2. To order W8ZR semi-kit(s) using PayPal or credit card, click HERE or on the link below, and then follow the secure checkout instructions. The link will take you to the Harbach Electronics secure order form. Harbach Electronics now handles the marketing and sales of all StationPro kits for me.

3. Payment by check or money order is also welcome. Email me first with your desired kit choice(s), being sure to include name, callsign, and shipping address. I'll confirm your order by email with payment instructions.

4. Shipping Charges: A Flat-Rate USPS Priority Mail shipping charge of $12 (USA), $21 (Canada), $43 (other international) per kit will be added when you check out. Unfortunately, I can't combine shipping for multiple orders, because each kit is individually packed and shipped. Note that PayPal will charge Canadian builders $43 shipping but I will refund the $22 difference.

5. Availability: I have plenty of SP-I and SP-II semi-kits ready to ship immediately. In the future, if I start to run low, I'll give several months warning on this page.

Summary of Available Kits (Itemized descriptions and photos below)

SP-I: StationPro I Semi-Kit (**VERY LIMITED INVENTORY**)
SP-II: StationPro II Semi-Kit
SP-UP: SP-I Upgrade Semi-Kit (to upgrade an SP-I to an SP-II) (**SOLD OUT**)
SP-POD: Additional transceiver pod kits, sold in lots of three only
SP-NET: Network semi-kit, for networking up to three SP-IIs
Click HERE to Purchase. The link will take you to the Harbach Electronics secure order form.
Kit No Price
Contents
Description
SP-I
$245.00
(on sale for $122.50)

1 - main circuit board
1 - SP-I front panel circuit board
1 - rear panel circuit board
1 - SP-I jumper circuit board
1 - RF relay circuit board
2 -Transceiver pod circuit boards
1 - SP-I custom controller enclosure
1 - RF relay custom enclosure
2- 8 pin chassis mount mic jacks
2 - hardware packs
1 - SP-I operating and assembly manual
Contains the seven (blank) printed circuit boards and two custom enclosures required to build the SP-I. Also contains two standard 8 pin mic jacks, two hardware packs, and a spiral bound operating and assembly manual. To order the remaining SP-I parts from Mouser Electronics, click HERE
SP-II

$280.00

(on sale for $220)

1 - main circuit board
1 - SP-II front panel circuit board
1 - rear panel circuit board
1 -SP-II microcontroller circuit board
1 - RF relay circuit board
3 -Transceiver pod circuit boards
1 - SP-II control unit enclosure
1 - RF relay enclosure
1 - PIC 16C54C pre-programmed integrated circuit
2- 8 pin chassis mount mic jacks
2 - hardware packs
1 - SP-II operating and assembly manual

 Contains the eight (blank) printed circuit boards and two custom enclosures required to build the SP-II, plus a preprogrammed IC used as an LCD driver, two 8pin mic jacks, two hardware packs, and a spiral bound operating and assembly manual. To order the remaining SP-II parts from Mouser Electronics, click HERE
SP-UP





$85.00

**SOLD OUT**


1 - SP-II front panel
1 - SP-II front panel circuit board
1 - microcontroller circuit board
1- transceiver pod PCB
1 - PIC 16C54C pre-programmed integrated circuit

 Contains one SP-II front panel, one SP-II front panel printed circuit board, one transceiver pod circuit board, and a preprogrammed IC used as an LCD driver, needed to uprade an SP-1 to an SP-II. Order separately the necessary remaining components by downloading the preformatted order list.
SP-POD

$20.00

 3 - Extra transceiver pod circuit boards. Note: two (SP-I) or three (SP-II) pod printed circuit boards are supplied with semi-kit orders. (Shipping is Free to all buyers)

 Contains three additional pod printed circuit boards Order separately the necessary remaining component, by downloading the preformatted order list.
SP-NET

FREE

(supplied on request to builders of two or more SP-II semi-kits)

1 - station select printed circuit board.

1- Assembly instructions and parts list

 Contains one circuit board for building the remote relay unit to network two or three SP-II station controllers. Builder must supply the other necessary parts. Note that the Hammand die-cast enclosure in the parts list is not pre-punched or silkscreened..



Detailed Descriptions of PCBs and Enclosures (not sold individually)
SP-I and SP-II Main Circuit Board
Double-sided 8.500" x 6.000" circuit board, FR-4 fiberglass, tinned & plated traces, thru-plated holes, and integral ground planes. Boards have green solder masks, white silk-screened component legends and milled edges. These are very high quality circuit boards.
SP-I Front Panel Circuit Board
 Same as above, except 8.000 x 3.500 inches
SP-II Front Panel Circuit Board Same as above, except 8.000 x 3.750 inches
SP-I and SP-II Rear Panel Circuit Board
 Same as above, except 8.000 x 1.750 inches
SP-II Microcontroller Circuit Board
 Same as above, except 6.175 x 5.500 inches
Transceiver Pod Circuit Boards
Same as above, except 3.625 x 2.000 inches (The SP-I kit includes two pod PCBs, three for the SP-II kit.)
RF Relay Circuit Board
 Same as above, except 6.750 x 4.000 inches
Station Select Network Printed Circuit Board
 Same as above, except 4.000 x 2.900 inches
Control Unit Enclosure
Custom enclosure with black powder-coated steel covers and punched and silkscreened aluminum panels. Includes hardware. Dimensions (nominal) are 9"W x 4"H x 7"D. (photo shows SP-II enclosure. The SP-I enclosure has different front panel.)

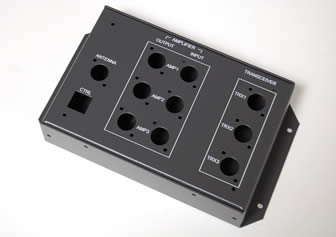

RF Unit Enclosure
Custom prepunched and silkscreened enclosure, with mounting flanges. Dimensions (nominal) are 7.5”Wx 5.0”H x 1.5 “D.



Warranty Information and Limitations of Liability

W8ZR warrants each semi-kit to be as described. Returns are accepted within 30 days for any reason, provided semi-kits are unassembled and undamaged (buyer pays return shipping). Any defective or missing semi-kit item will be immediately replaced without charge for at least one year, or longer if the inventory lasts, and W8ZR will pay shipping. All future firmware upgrades are free. No other warranty is express or implied.
